Nail Sharding in System Design Interviews: Range-Based, Hash-Based, Directory-Based

By Pradyumna Chippigiri

December 12, 2025


Previously, we talked about how we deal with a situation when an application grows overnight: more users, more traffic, more queries.


Our first reaction was straightforward:


And that worked… for reads.


You can read about it here: Database Scaling


Read replicas were amazing because they helped us spread the read load across multiple machines. But there was one thing we still couldn’t scale: writes.


No matter how many replicas we added, every single write still went to one place: the primary database.


And sure, we can increase CPU, add RAM, use faster disks. But hardware scaling hits a limit. Eventually, this one machine becomes the bottleneck for write-heavy systems.


And that’s exactly where sharding comes in.

Sharding

Split the data horizontally across multiple databases (shards), so writes are spread out instead of hitting a single node. So each shard now has its own CPU, its own memory, its own storage, its own connection pool.


A shard is just a subset of your data stored in a separate database.

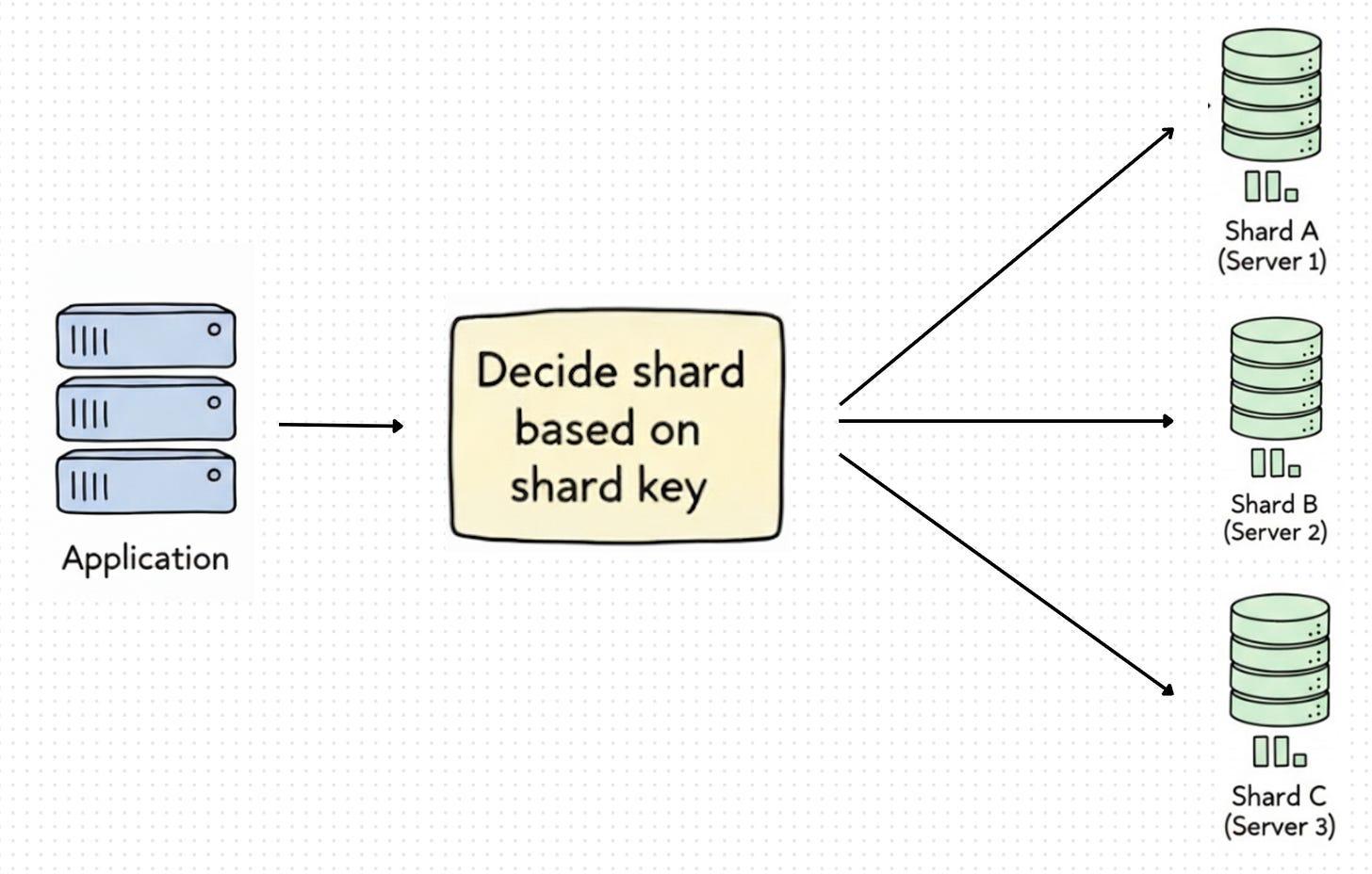

Sharding overview


Example:

As we grow we can increase the number of shards.


You can (and usually should) have replication inside each shard:

So you end up with: sharding for scaling writes, replication for high availability + read scaling.


So sharding solves the problem of scalability in writes, but you may ask questions like:

How to shard your data?


When you decide to shard, you’re really making two decisions that work together:

  1. What to shard by (the shard key): this is the field/column you use to split the data – for example, user_id, tenant_id, or country. It defines how the data is logically grouped.
  2. How to distribute it (the distribution strategy): this is the rule that assigns those groups to shards. It defines how those groups are spread across machines.

In practice, this logic usually lives in your API/backend code as a routing strategy. Every read or write request goes through this routing logic before it touches the database.

function getShardId(userId: number) {
  // Simple hash-based strategy:
  // use userId % 4 to pick one of 4 shards
  return userId % 4; // 0,1,2,3 → 4 shards
}

function getShardConnection(userId: number) {
  const shardId = getShardId(userId);
  return shardConnections[shardId]; // pick the right DB client
}

Here:

Choosing the Right Shard Key


When you shard a database, the shard key decides how your data and traffic are split across machines. When you shard or partition data, you expect traffic to be spread out evenly.


A shard that receives disproportionately high traffic (reads or writes) compared to others becomes a bottleneck while other shards sit mostly idle. This is called a hot partition.


Example:

In that case, even if you have 10 shards, your system behaves like one overloaded shard.


So a good shard key should have:


High cardinality


High cardinality makes it easier to avoid hot partitions, because the key space is nicely spread out.

Align with query patterns


Your shard key should match how your application queries data.

If your shard key has nothing to do with your query filters, you’ll end up with:

Immutable and stable


The shard key should never change after it’s chosen.

If the shard key changes, you’d have to move rows across shards, which is slow, error-prone, and painful in production.

Different Sharding Strategies

1. Range-based sharding

Range-based sharding divides your data into contiguous ranges:

Shard 1 → User IDs 1–1M
Shard 2 → User IDs 1M–2M
Shard 3 → User IDs 2M–3M

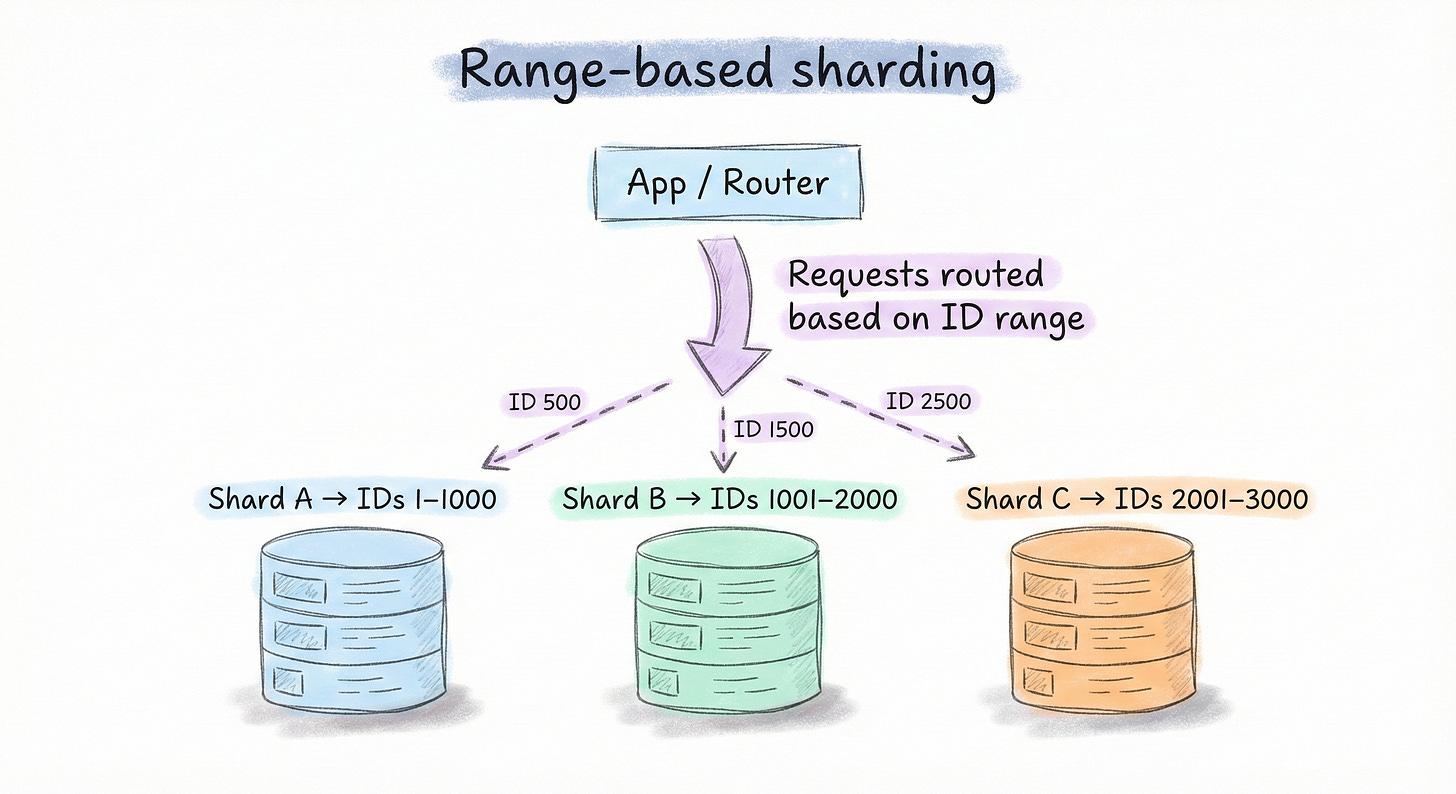

Range-based sharding


The main advantage of range-based sharding is simplicity and support for efficient range scans. If you need all orders between user IDs 500K and 600K, you only hit one shard.


Range-based sharding is simple to implement and understand, but it can lead to hot spots. Early on, all traffic goes to the first range (because only low IDs exist), so one shard does all the work while the others are empty. Later, as the system grows, all new writes and recent activity queries pile onto the latest range, so the last shard becomes the new hotspot.

2. Hash-based sharding

Hash sharding uses a hash function to evenly distribute records across shards. Instead of assigning ranges, you take a shard key like user_id, hash it, and use the result to pick a shard. This is the default and most common sharding strategy.

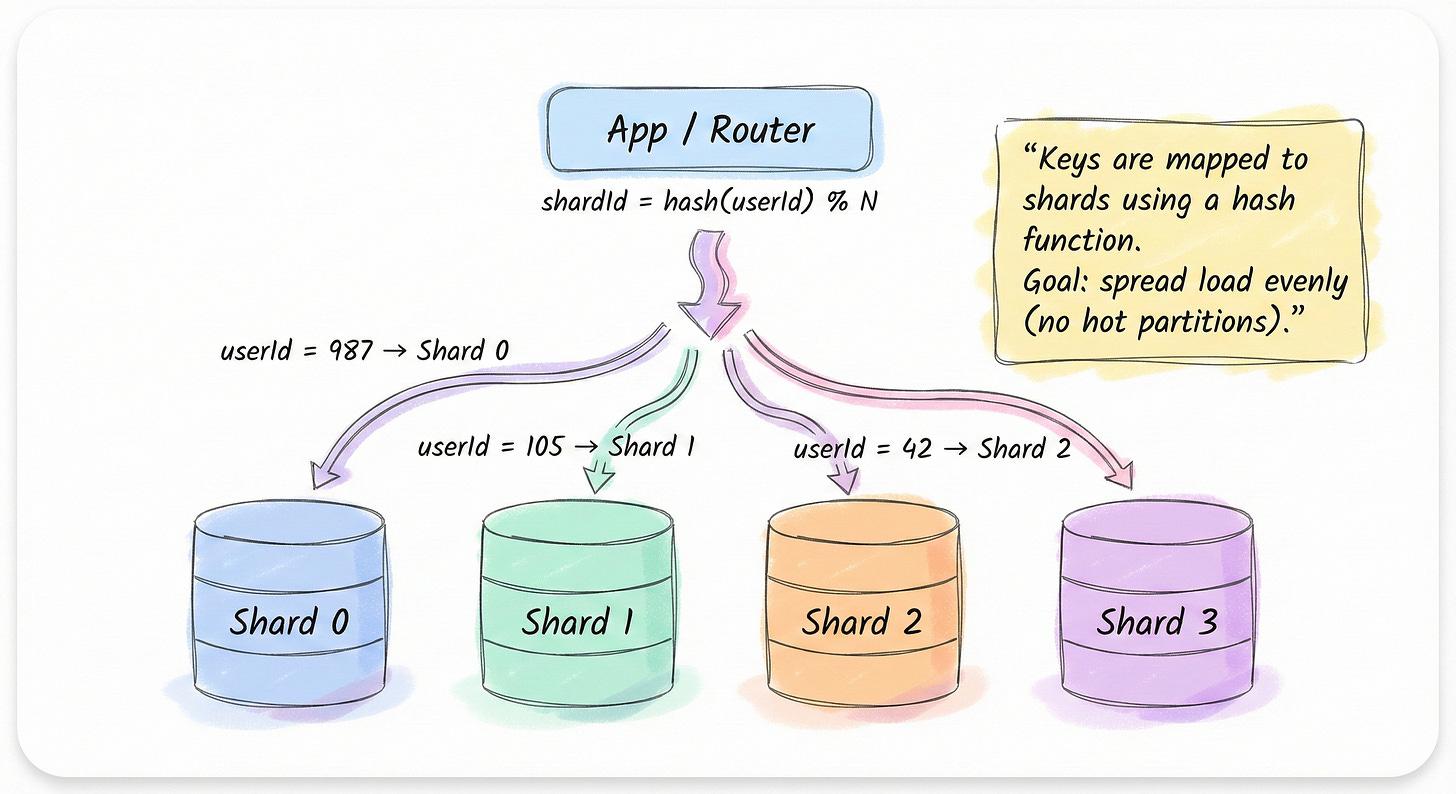

Hash-based sharding


Hashing evenly distributes data across shards, minimizing hot spots.


Hash-based sharding using hash(key) % N spreads data evenly at first, but the moment you add or remove a shard, the value of N changes and almost every key now maps to a different shard, causing a massive reshuffle and painful rebalancing. Consistent hashing fixes this by placing shards and keys on a hash ring so that when the number of shards changes, only a small fraction of keys move to new shards, keeping the system much more stable and easier to scale.


We will talk about consistent hashing in a different article.

3. Directory-based sharding

Directory sharding uses a lookup table to decide where each record lives. Instead of using a formula, you store shard assignments in a mapping table or service.

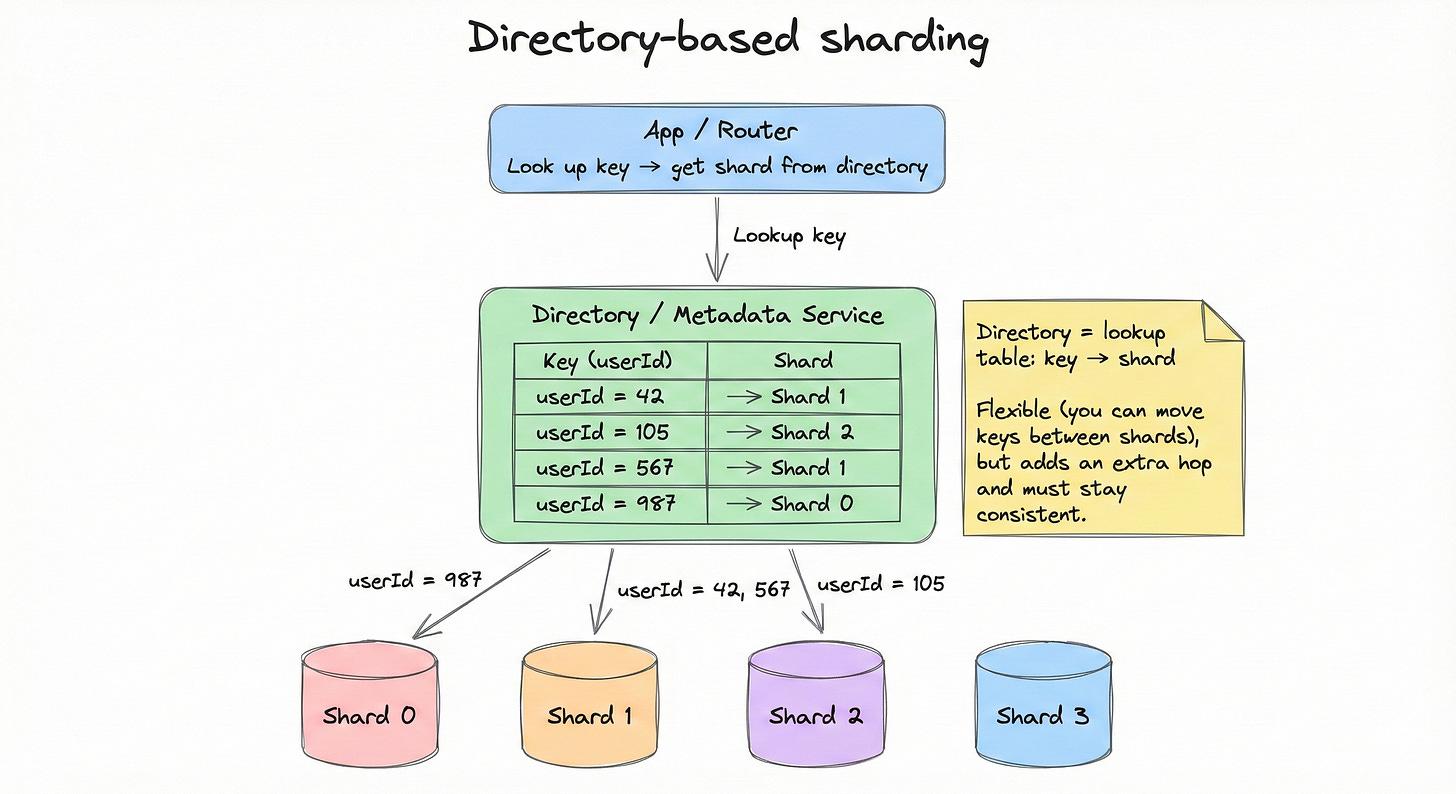

Directory-based sharding


Directory-based sharding gives you maximum flexibility: you keep a mapping of userId → shard, so you can move heavy users to dedicated shards or rebalance load just by updating the directory instead of reshuffling all data. The tradeoff is that every request needs a directory lookup, which adds latency and turns the directory into a critical dependency. If it goes down, your whole system is effectively down.

Partitioning

Partitioning means splitting a large table into smaller pieces inside a single database instance.


Unlike sharding, partitioning doesn’t spread data across multiple machines. Instead, it helps organize data internally to speed up queries. Partitioning directly impacts performance and data manageability. Here are some of its key benefits:

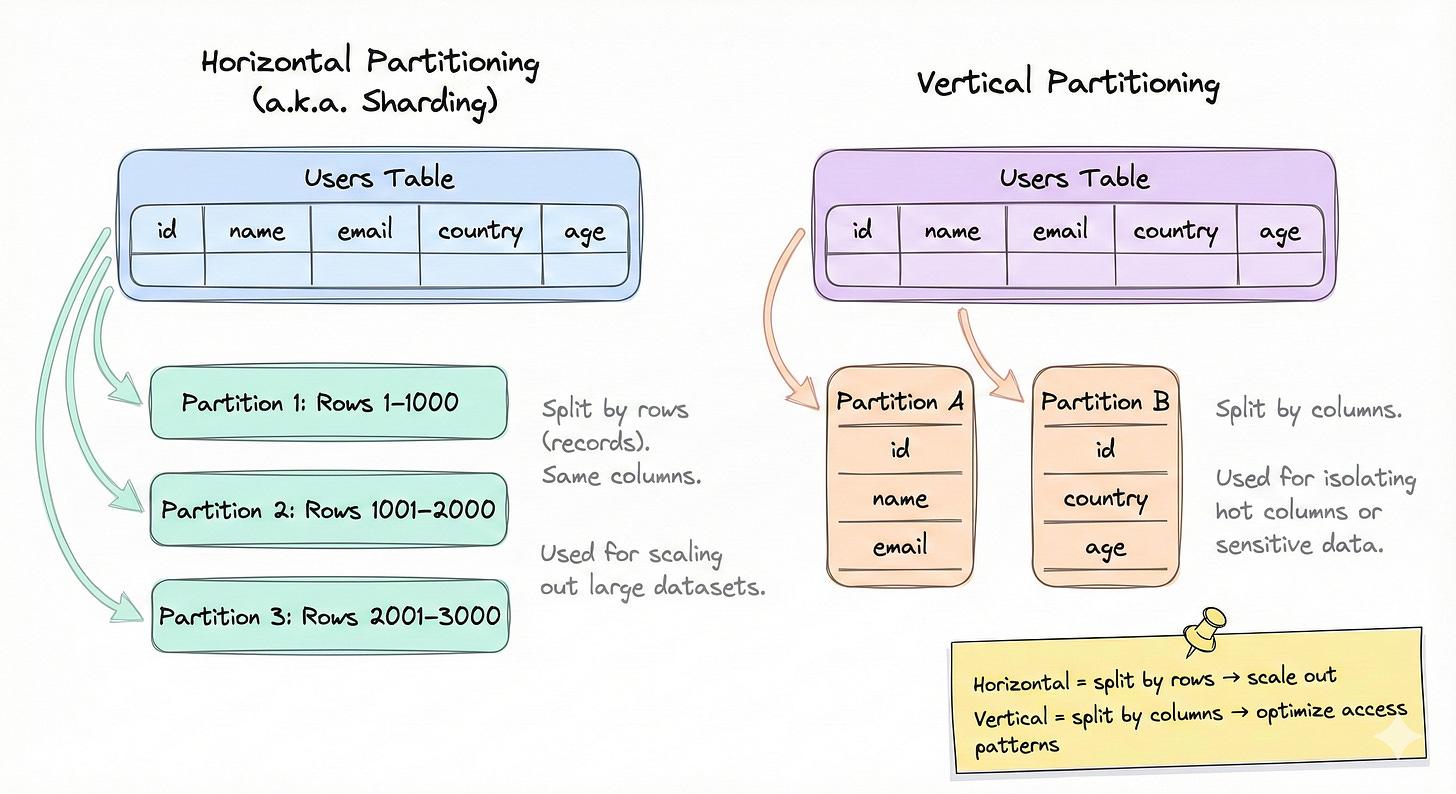

Partitioning


There are 2 types of partitions:

1. Horizontal Partitioning

Split rows across partitions. For example split by row range.

2. Vertical Partitioning

Split columns across partitions. For example, keep frequently accessed columns in one partition and large or rarely used columns in another. Same rows, fewer columns per partition.

We’ve reached the end of this super informative blog.


Last but not the least to say that:

A scalable architecture almost always combines:
